  1. BOTS
  2. Bot Connectors

Connect Shopify and WhatsApp to collect orders using chatbot

Connect your Shopify store effortlessly with our detailed walkthrough. Replace order tags, create orders, and generate draft orders using our step-by-step guide.

PreviousSend your WhatsApp data to Zoho CRM using ChatbotNextSend your WhatsApp data to HubSpot using Chatbot

Last updated 11 months ago

Who can use this Card?

  • Gallabox Users having permission to either build and deploy bots or manage bots.

  • Available on all Paid Plans.

Overview

Embark on a seamless integration journey with Shopify using our step-by-step guide. Whether you're replacing order tags, creating orders, or generating draft orders, this documentation provides a detailed walkthrough for connecting Shopify to your chat-flow effortlessly.

Shopify API Key and Secret

  1. Log into your Shopify admin panel, go to Apps Menu from left navigation. Scroll down the page and click on Develop apps for your store.

  1. Click on Create an App and then enter the App name as Gallabox. Click on "Create app".

  1. Once the App gets created on your Shopify admin, click on API credentials then scroll down, in the Access tokens area, click Configure Admin API access.

  1. To configure Admin API Scopes, tick all Permissions “Read_….” and “Write_…” (if any). Click Save App, at the bottom of the page.

  1. Click on API credentials and you will see API Key and Secret Key (i.e. API Key and Password).

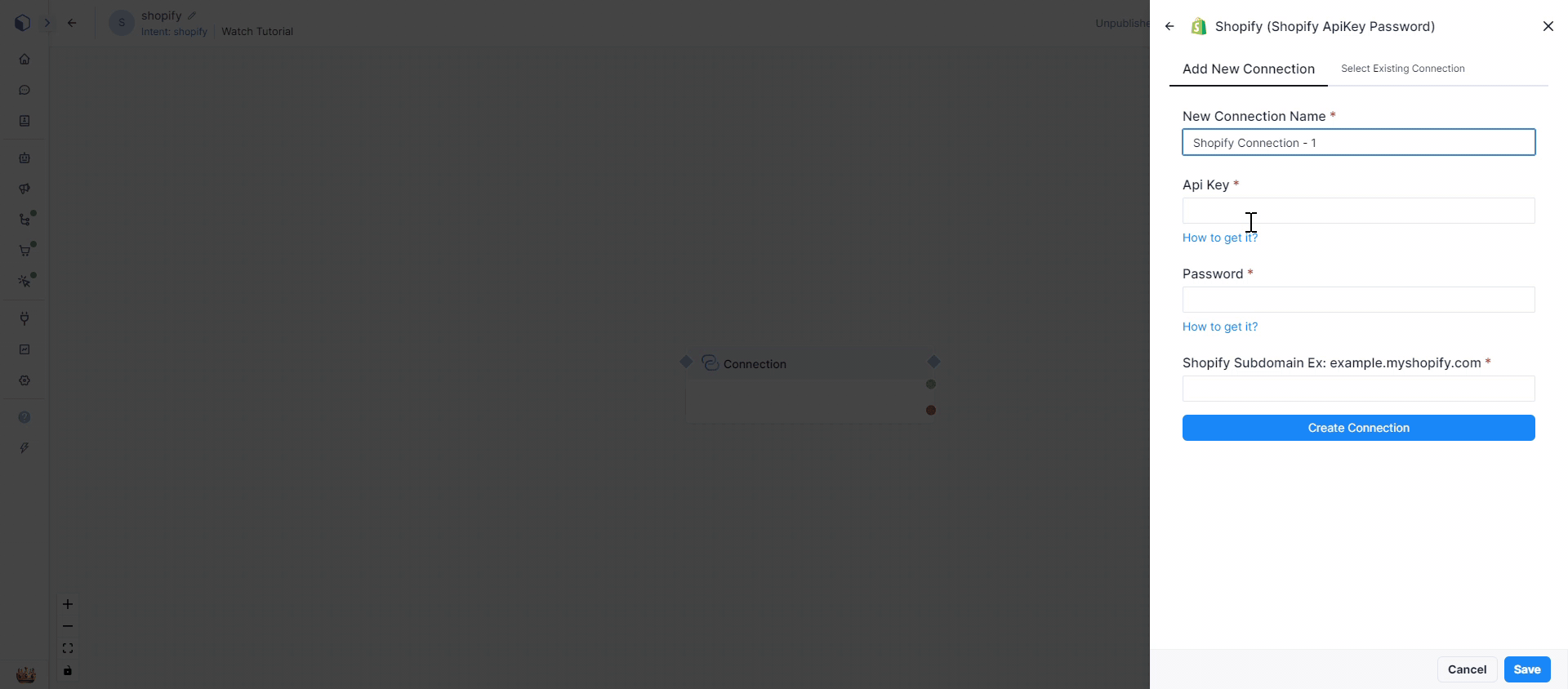

Connect Shopify

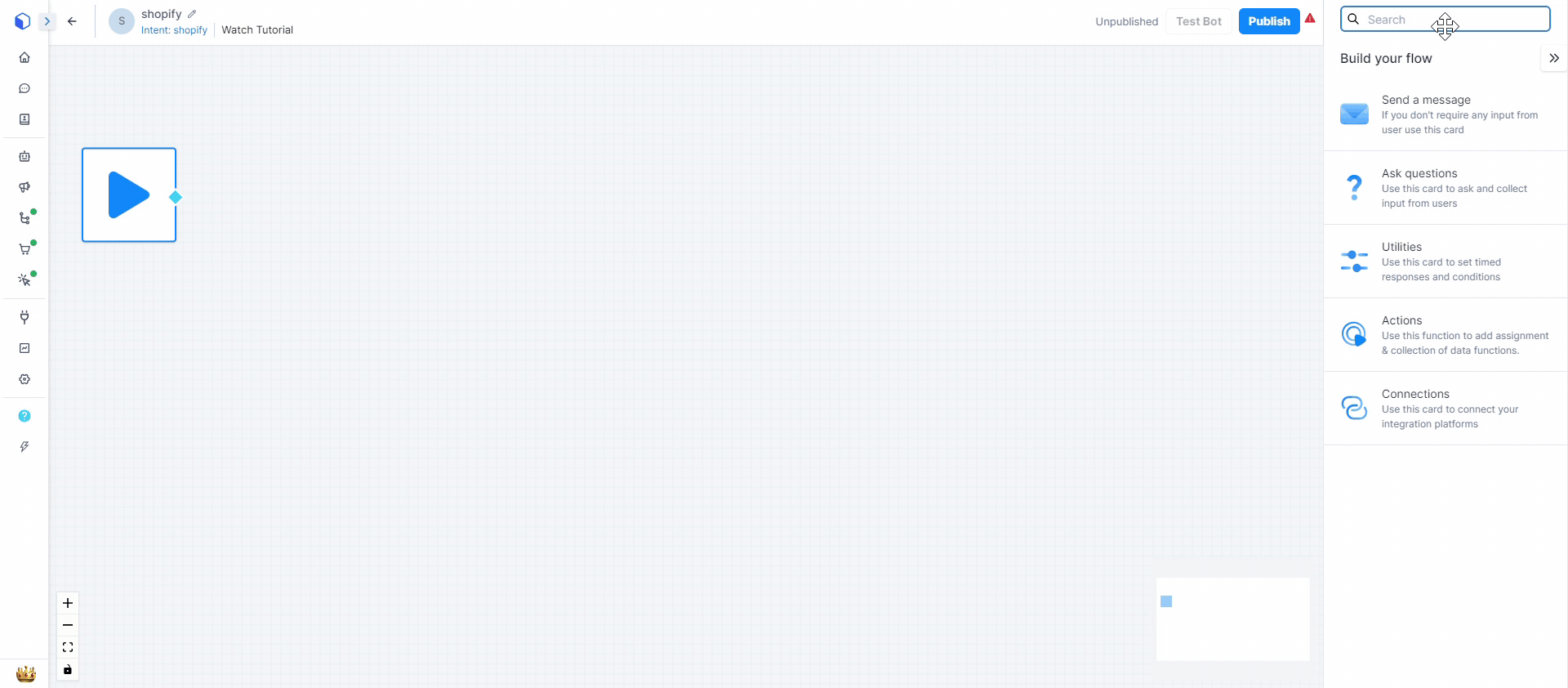

  1. Choose the connector - Shopify from the list of connectors.

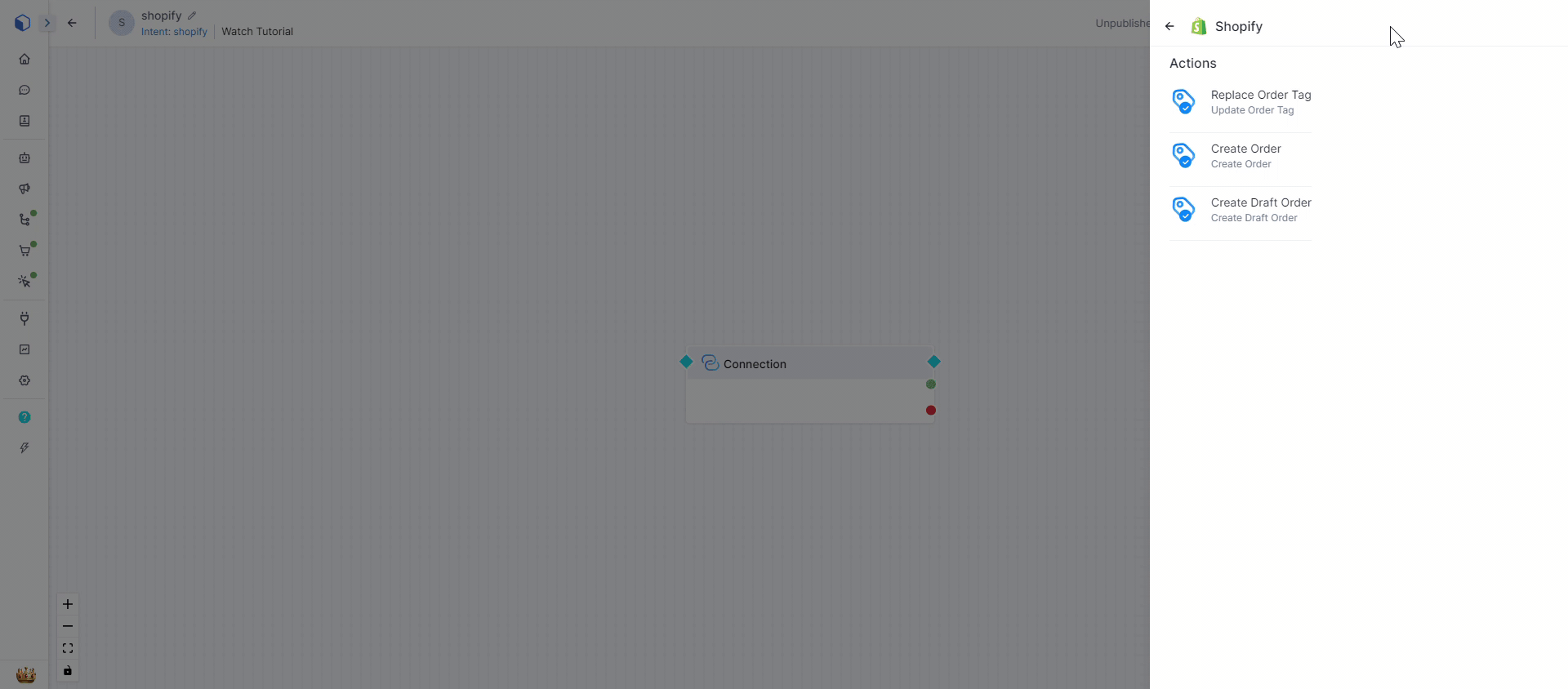

  1. After clicking on Shopify, you will see four actions- Replace Order Tag, Create Order, and Create Draft Order, and Complete Draft Order. Proceed with selecting any one of them and you will be asked to either create New Connection or choose from Existing.

Using the Shopify Connector

You can perform the following four actions using the Shopify Connector:

Action Name
Action Description

Allows you to update an existing order tag with a new one, helping categorize or track orders differently.

This action is the basic action of creating a new order in Shopify, capturing customer information, products, and payment details.

This action lets you create an order on behalf of a customer without immediate payment. You can then send an invoice or collect payment later.

This action finalizes a draft order, after a customer pays or confirms the order details. It then becomes a regular order with fulfillment options.

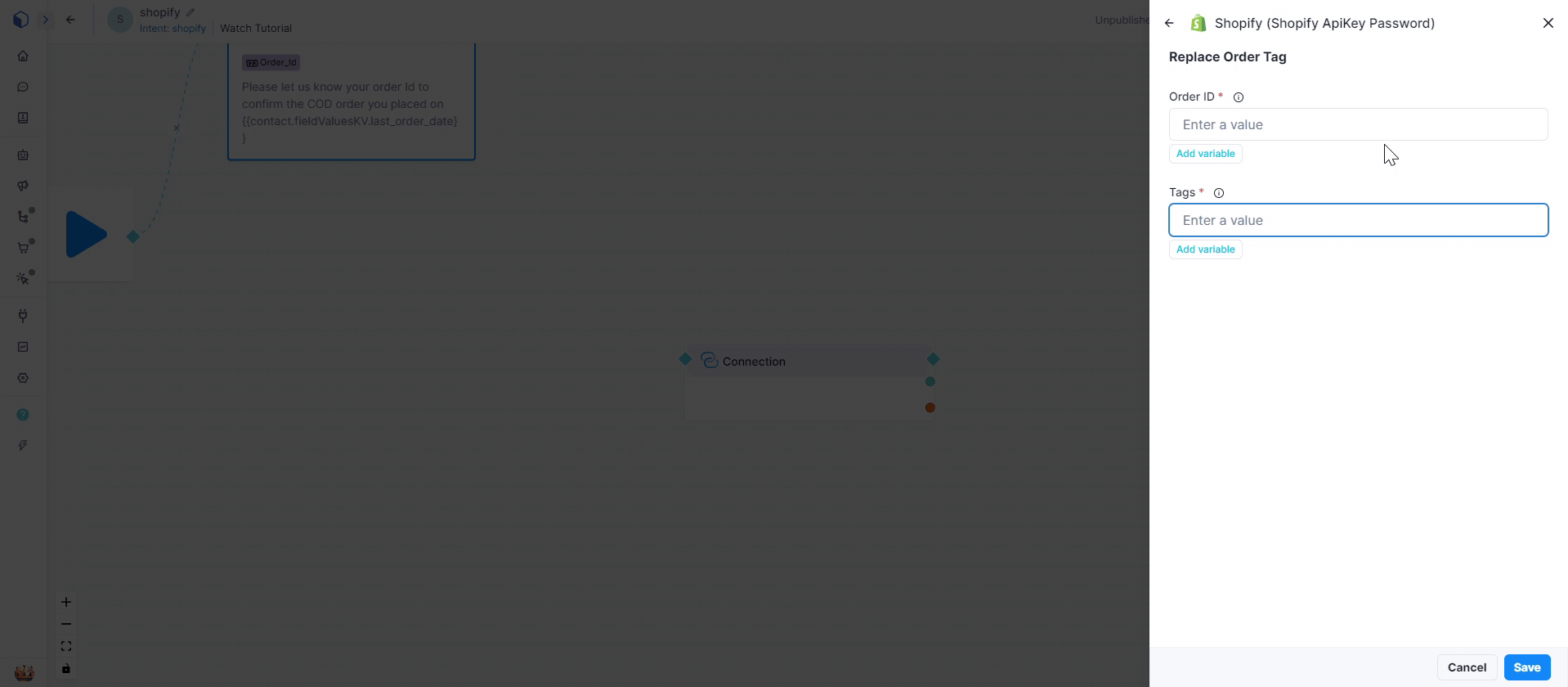

Replace Order Tag

Using the Replace Order Tag action, you can update tags on existing orders without manual edits. This is especially beneficial for sales campaigns, inventory management, and boosting customer service efficiency by maintaining clear and updated order categorization.

To use this Action:

Select the corresponding variables in which you have stored the value for Order ID and Tags or you can enter the information in the field. Click on Save.

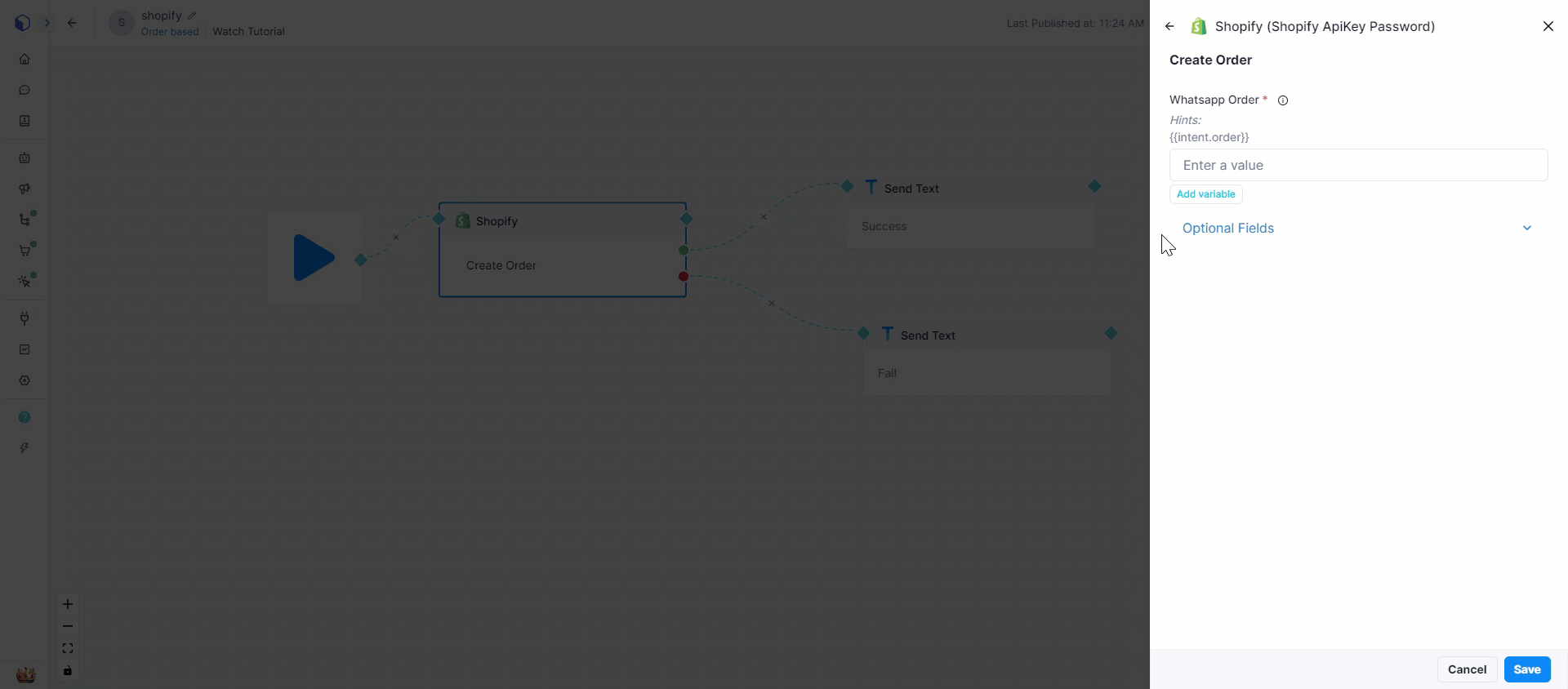

Create Order

This Action will work for an Order-based chat-flow.

Available Fields for this Action:

Fields
Description

Whatsapp Order

Indicates an order initiated through a WhatsApp integration. Example: {{intent.order}}

Name

Add a variable under which the values for customer's name is saved. Example: {{recipient.name}}

Phone

Add a variable under which the values for customer's phone number are saved. Example: {{recipient.phone}}

Financial Status

Choose from the dropdown the status of the order. Example: Partially Paid

Tag

Add a variable under which the values for order tags are saved or enter the Tag you would like to add to the contact. Example: COD Confirmation.

Note

Add a variable under which the values for order notes are saved or enter the note you want to attach with the order. Example: Need

Source Name

Identifies the channel where the order originated in Shopify.

Address

Customer's billing address associated with the order in Shopify.

City

City portion of the customer's billing address in Shopify

State

State or province portion of the customer's billing address in Shopify

Country

Country portion of the customer's billing address in Shopify.

Pin

Postal code associated with the billing address in Shopify.

Shipping address

Customer's address where the order will be shipped in Shopify.

Shipping City

Customer's city where the order will be shipped in Shopify.

Shipping State

Customer's state where the order will be shipped in Shopify.

Shipping Country

Customer's country where the order will be shipped in Shopify.

Shipping Pin code

Customer's postal code where the order will be shipped in Shopify.

Choose the variables where you stored the values for all the fields mentioned above. Then, click Save.

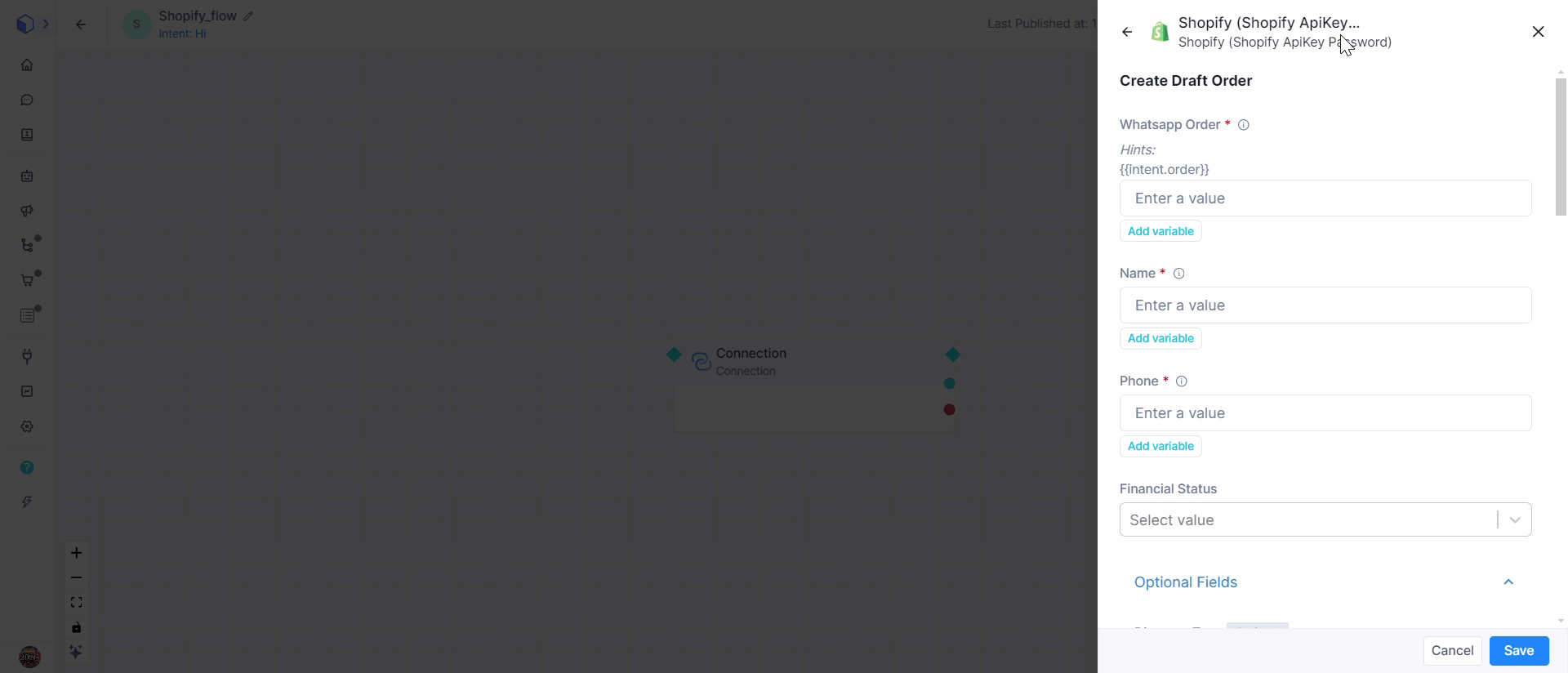

Create Draft Order

Draft orders in Shopify provide flexibility and control over order management. Creating draft orders is key for manually managing orders that don't go through the standard checkout process.

Available Fields for this Action:

Fields
Description

Whatsapp Order*

Indicates an order initiated through a WhatsApp integration. Example: {{intent.order}}

Name*

Add a variable under which the values for customer's name is saved. Example: {{recipient.name}}

Phone*

Add a variable under which the values for customer's phone number are saved. Example: {{recipient.phone}}

Financial Status

Choose from the dropdown the status of the order. Example: Partially Paid

Discount Type

hoose from two options - Percentage or Fixed Amount.

Discount Value

Add a value for either percentage or any fixed amount.

Discount Title

he name or short description associated with a discount applied to an order. Example: Summer Sale

Discount Description

Additional details explaining the discount applied to an order. Example: 10% off all items

Address

Customer's billing address associated with the order in Shopify.

City

City portion of the customer's billing address in Shopify

State

State or province portion of the customer's billing address in Shopify

Country

Country portion of the customer's billing address in Shopify.

Pin

Postal code associated with the billing address in Shopify.

Shipping address

Customer's address where the order will be shipped in Shopify.

Shipping City

Customer's city where the order will be shipped in Shopify.

Shipping State

Customer's state where the order will be shipped in Shopify.

Shipping Country

Customer's country where the order will be shipped in Shopify.

Shipping Pin code

Customer's postal code where the order will be shipped in Shopify.

Draft Order ID

Add a variable under which the Draft Order ID will be saved. Example: order_created_manually

Invoice URL

Add a variable under which the Invoice URL will be saved. Example: Invoice_URL_generated

This Action will create the draft order and send the payment link to the user.

Enter the value or select the corresponding variables in which you have stored the value for all the fields. Click on Save.

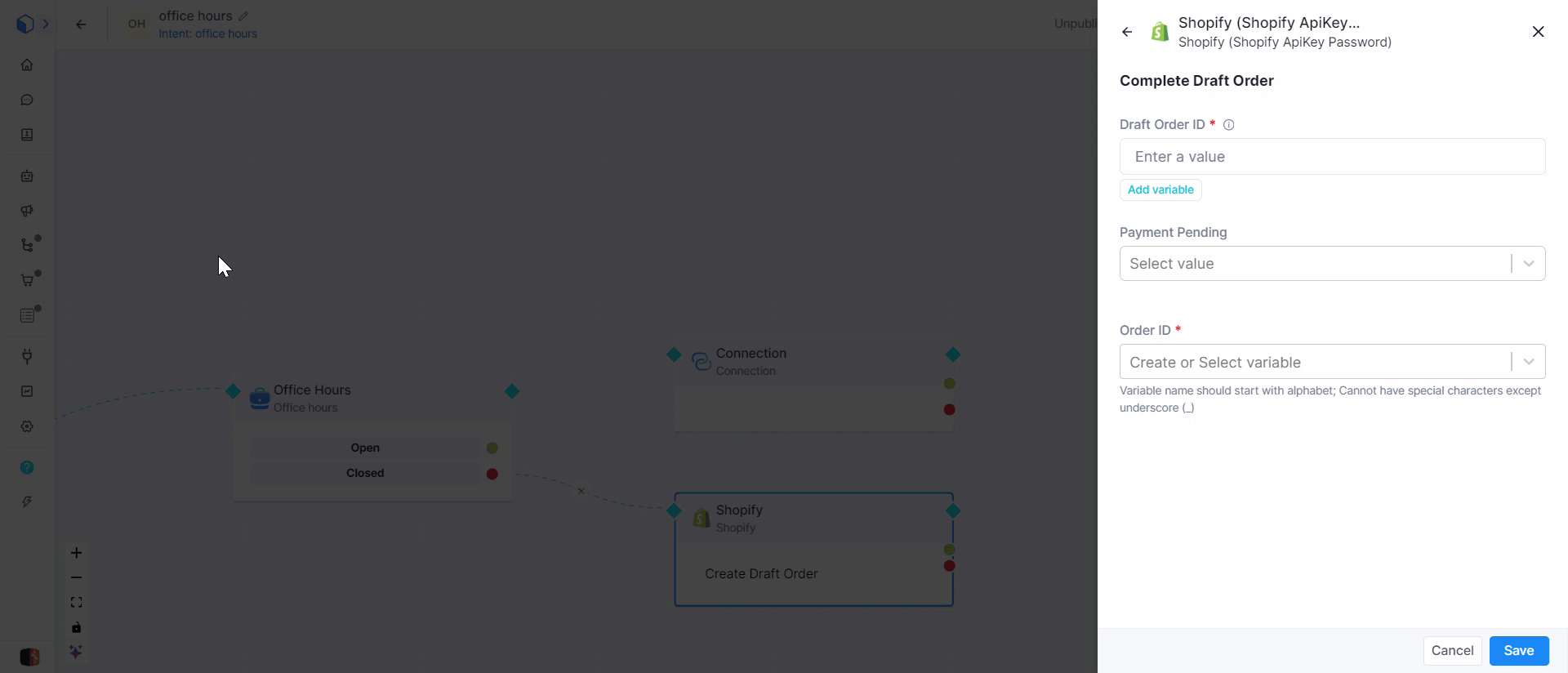

Complete Draft Order

Available Fields for this Action:

Field Name
Field Description

Draft Order Id

Insert the variable under which temporary order is created in Shopify before customer payment or confirmation.

Payment Pending

Choose either True or False for the payment of that order.

Order Id

Insert the variable to store the finalized order Id in Shopify post payment confirmation by the customer.

Select the corresponding variables in which you have stored the value for Draft Order Id, from the dropdown select the payment pending status.

All the details of the customers captured after they interact with the chat-flow having Shopify Connector will be pushed to the connected Shopify account.

Make sure to add the right variables as values for all the fields.

With your Shopify connector configured, effortlessly manage orders and draft orders. Follow the steps outlined in this guide to ensure accurate data input, whether it's replacing order tags or creating new orders. Optimize your Shopify integration by adding the right variables and values, making your chat-flow a powerful asset for streamlined e-commerce management.

If you haven't made any connection, you will have to enter , , and Shopify Subdomain and click on Create Connection. Once you paste the API Key, Password, and Shopify Subdomain click on Create Connection.

🤖
API Key
Password
Replace Order Tag
Create Order
Create Draft Order
Complete Draft Order
